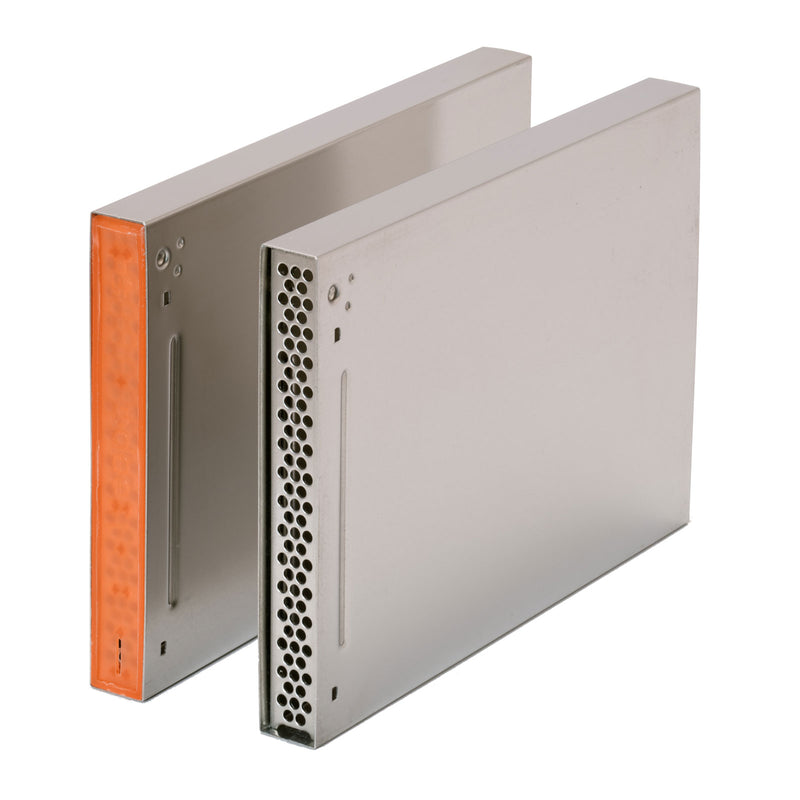

Weephole Brick Vent Stainless Steel Weepa Vent | A Pack of 10 Pieces

A weep hole made entirely of stainless steel that is ideal for brick walls, generates a tidy and appealing weep hole, encourages efficient cavity ventilation, and guards against vermin entrance as well as sparks and embers from bushfires..

Specifications

• Size: 75 mm (H) x 10 mm (W) x 105 mm (D)
• Body: 316 Stainless Steel
• Ember/Vermin Guard: 316 Stainless Steel, Punched 1.8mm aperture
• Bushfire Compliance: AS3959:2018 BAL-LOW, BAL-A12.5, BAL-A19, BAL-A29, BAL-A40, BAL-FZ when used in masonry construction

Common Applications

• A luxury weephole former made entirely from marine grade 316 stainless steel for prestige projects.
• When installed in masonry construction it is compliant by design with Bushfire Attack Levels of AS3959:2018 BAL-LOW, BAL-12.5, BAL-19, BAL-29, BAL-40 and BAL-FZ.
• Installed by the bricklayer during construction.
• Suitable for use in face brick or rendered brick and block.
• The orange mortar protector is removed after installation, leaving a clean and beautiful finish.
• Excludes wide range of pests.

Weep holes acc to NCC:2019 Building Code of Australia Clause 3.3.5.9, in the form of Stainless Steel Weepa (Product Code 19-TSSW) for Level BAL-LOW, BAL-A12.5, BAL-A19 BAL-A29, BAL-A40 and BAL-FZ construction in bushfire prone areas as defined in AS3959:2018, in perpends to external leaves of cavity walls in the course directly above damp proof courses, flashing and cavity fill, and at the bottom of infill cavity. Spacing: not to exceed 1200 mm.

Note: Closer spacing for better airflow and drier chambers should be considered in designs for damper regions and air-conditioned facilities.
