Plastic Drainage Channel Grate Set Galvanised Steel Grate | 135mm 95mm 3m

Back To Business Discount Code: BTB5 5% OFF storewide. The code will be automatically applied at checkouts.
No reviews
Original price $3.50 - Original price $126.00
Original price
$126.00
$3.50 - $126.00
Current price $126.00

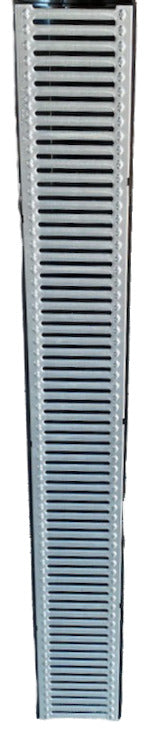

This Plastic Drainage Channel Grate is a clip-on drainage system intended for outdoor applications, regions with moderate to heavy rainfall, and regions with moderate to heavy water flow.

Specifications

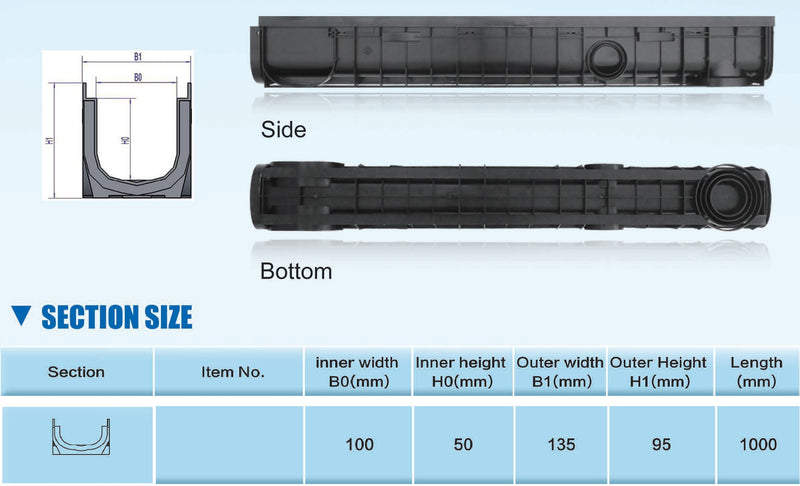

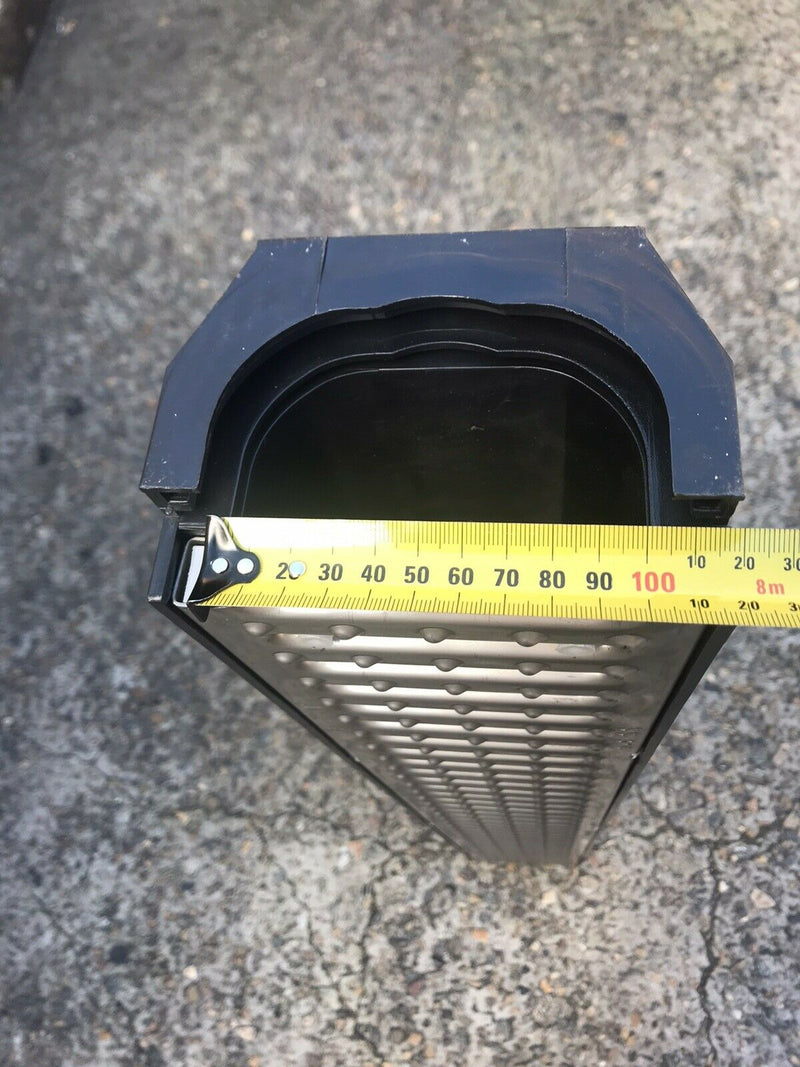

  • Outer Width: 135mm, Outer Height: 95mm

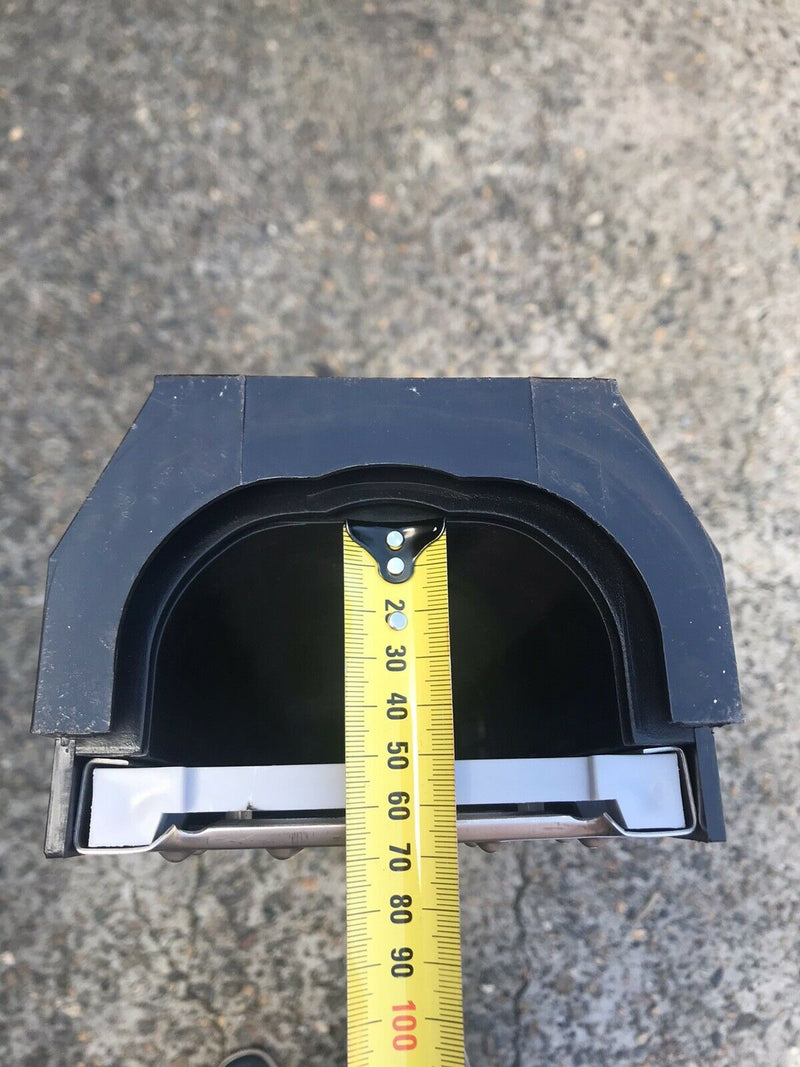

  • Inner Width: 100mm, Inner Height: 50mm
  • Length : 3m (comes in 3 x 1m length)
  • Materials: Grate: Galvanised Steel, Channel: Channel are made from Tough UV stabilized high density polypropylene (Polymer, HD-PE)

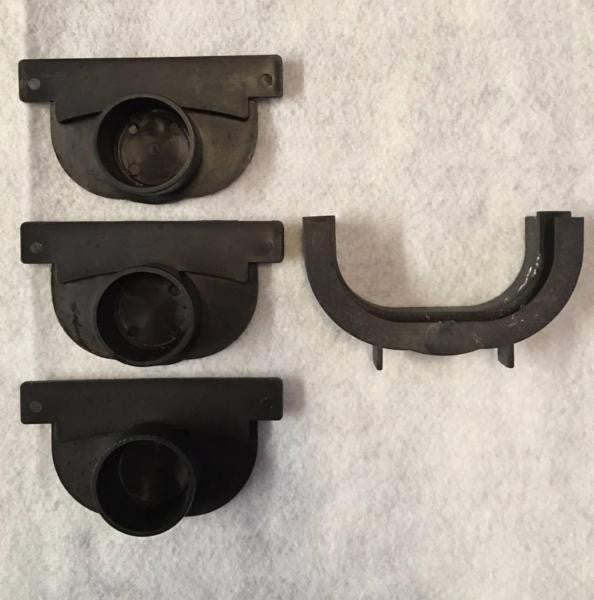

  • Garage Drain Pack Length: 3m (includes 1 pair of stop ends)
  • Wheel Loading: 1.5 Tonne
  • Extendable to your desired length and easy drainage system
  • Resists to chemical and atmospheric agents, acids, salts and alkali, oils and petrol.
  • Available in easy to carry 1 to 3 meter connected lengths.

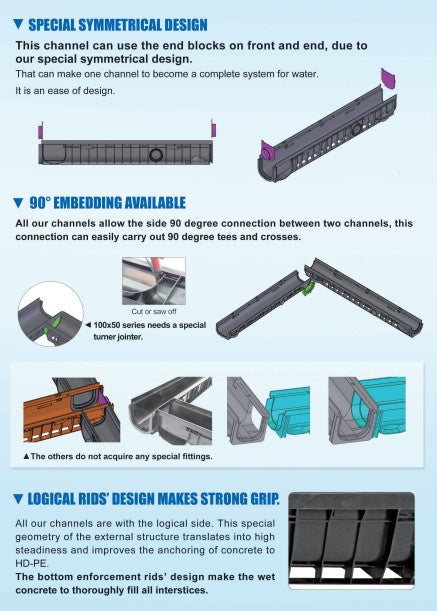

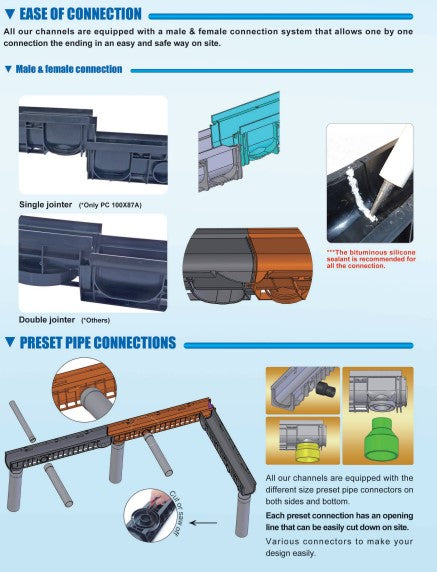

  • Channel lengths easily join together and other components by simply clicking together, and easy to make L connection or T connection

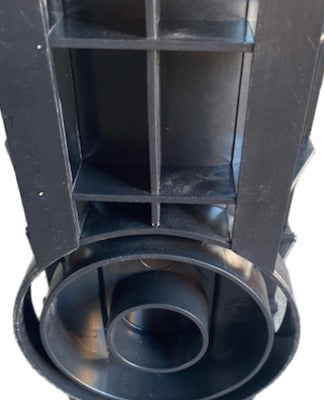

  • Connect to storm-water pipe on the side or at the bottom of the channel.
Common Applications
  • It is suitable for use around the home and light commercial areas including exterior patios, paved terraces, car parks, petrol stations, garage and other outdoor areas where drainage is required.
  • This channel grate can be used for storm water or rainwater grate drainage in walkways, landscaped areas and various outdoor spaces including garage and pool areas.

This Plastic Drainage Channel is made from high quality Polymer and the grate is made from galvanised steel material.

Please browse our grates and channels selection for other sizes and materials.
