Product Overview

The Class B Hot-Dip Galvanised Traditional Grate & Frame Set provides a strong and reliable drainage solution for residential, commercial and outdoor areas.

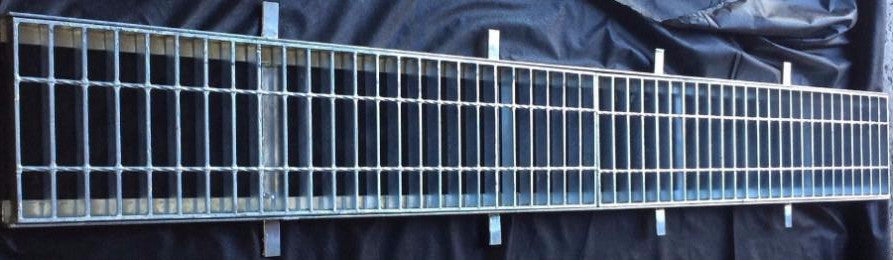

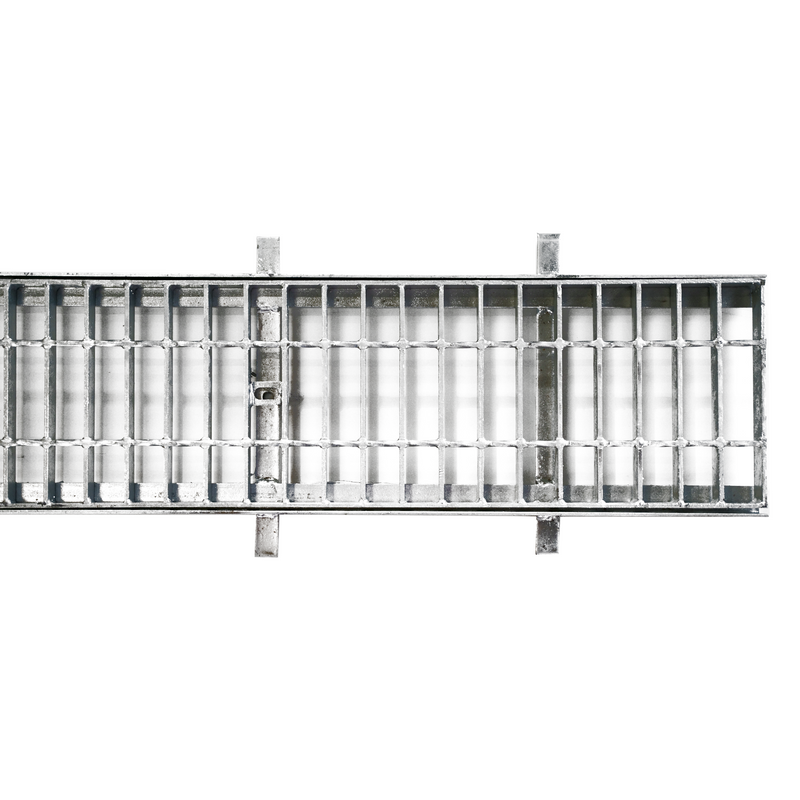

The traditional open-bar grate design allows stormwater to drain efficiently while providing a stable surface for pedestrians and light vehicles. Each complete set includes two removable 1m grates and one continuous 2m support frame.

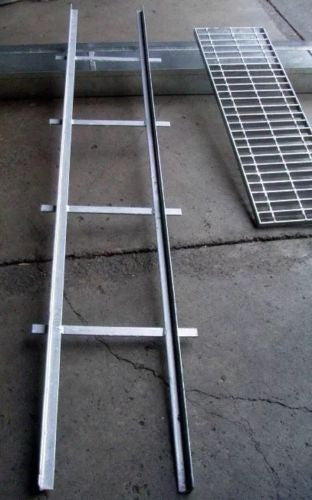

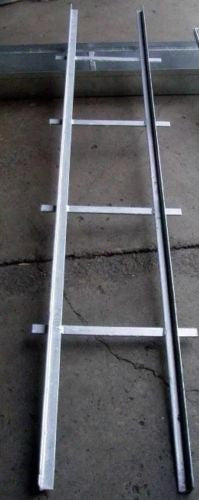

The frame is constructed with hot-dip galvanised top and bottom L-shaped rails and vertical supports, providing a secure base for the grates. Bolt-down security helps keep each grate firmly positioned and discourages unauthorised removal.

Specifications

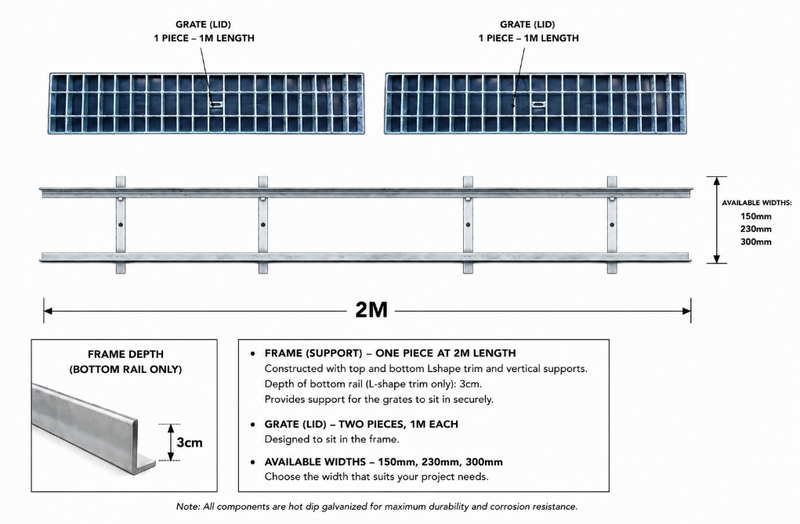

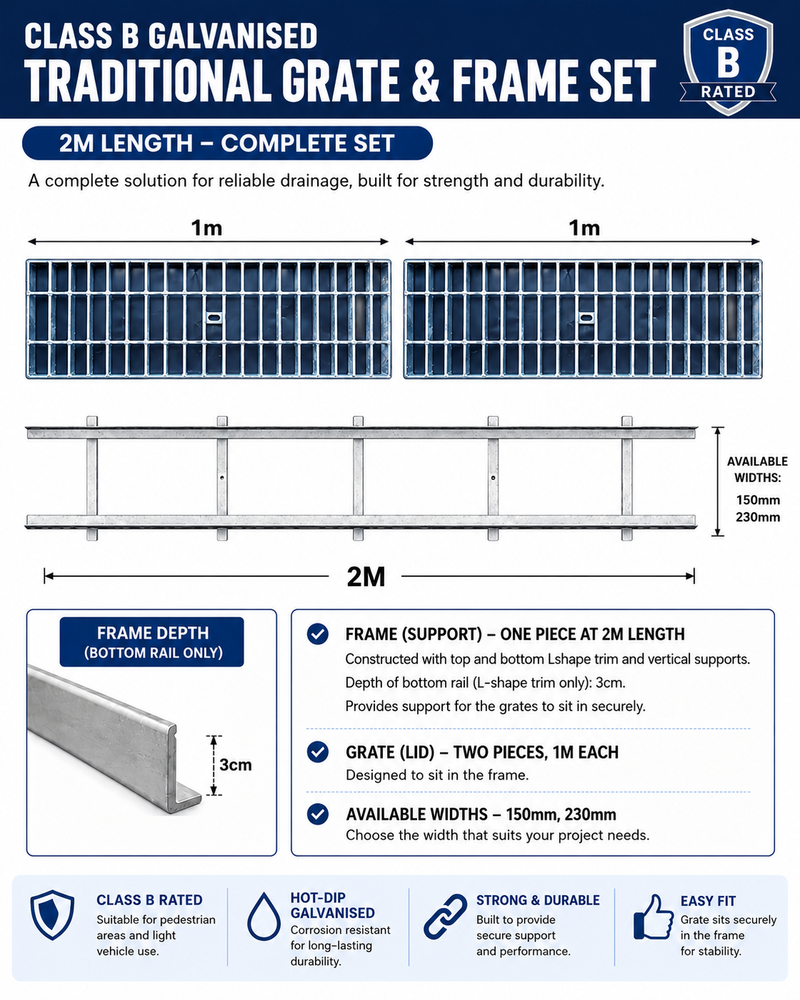

• Complete Set Configuration includes 2 x 1m Grates and 1 x 2m Support Frame
• Grates: 2 Traditional Grates (1m length each)
• Frame depth (L-shaped rail) is 30mm (2m length)
• Grates size: 230mm(W) ×25mm(H)×1m(L)

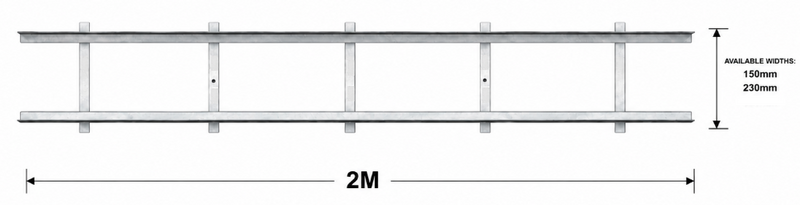

• Frame size: 240m(W) x 30mm(H)×2m(L)
• Traditional Grate Design
• Class B Load Rating Hot-Dip Galvanised Steel
• Bolt-down security Available
• Suitable for Grate and Frame set installation (other available size 150mm, 230mm and 300mm)

Common Applications

• They are ideal for replacements and suitable with your existing channels or to use with your concrete drainage solutions to drive storm water and rainwater away from your residential and commercial areas.
• Drainage or diversion of stormwater, sewage and wastewater, etc

Browse our grates and frame set selection for other sizes.
