Product Overview

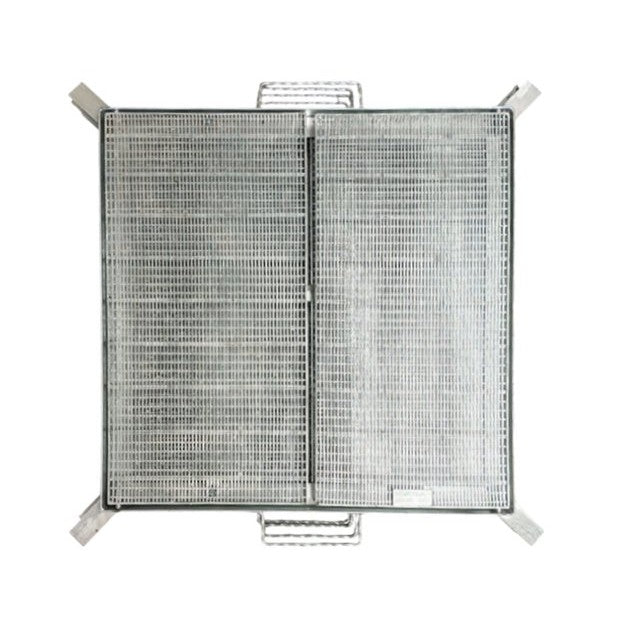

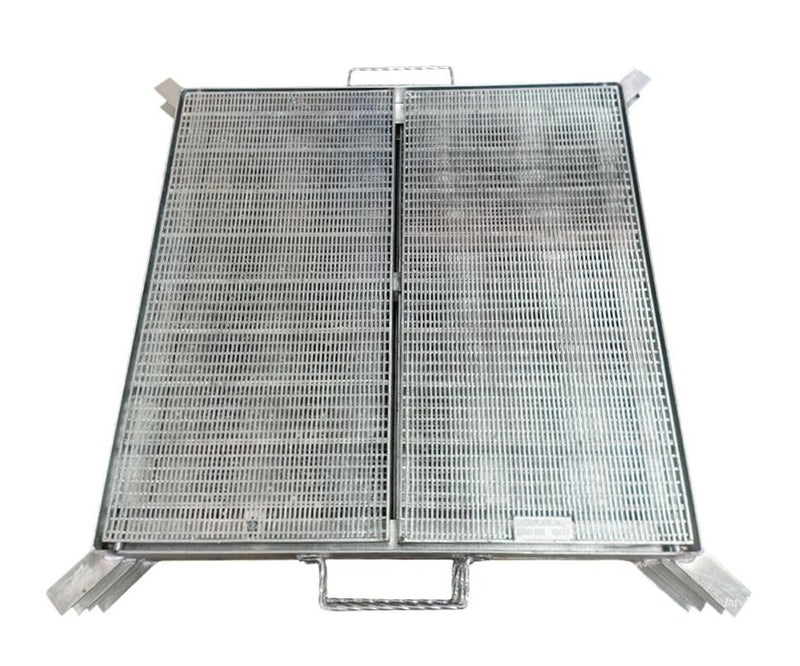

The Class B Hot-Dip Galvanised Linear Heelguard Grate and Frame Set is a durable and secure drainage and access solution for pedestrian and light vehicles areas. The linear heelguard pattern features narrow openings designed to improve pedestrian safety while allowing effective surface water drainage. They come with accessible hinge. These grates easily fit into the pit's opening and are flush with its top edge.

Specifications

• Frame Size: 935mm(L) x 935mm(W) x 55mm (D) comes with
• Grate Size: 920mm x 920mm x 50mm (Center Hinged and Open)

• Hot-Dip Galvanised Steel
• Linear Heelguard Pattern

• Centre Opening (Two-Piece Hinged) and Lockable Grate Type
• Grate can be bolted down to the frame, and frame goes into the concrete slab

• Complies with Australian Standards

• Class B Load Rating suitable for pedestrian areas and light vehicle traffic


Key Features

• Two-piece centre opening hinged design and sequential opening system improves safety

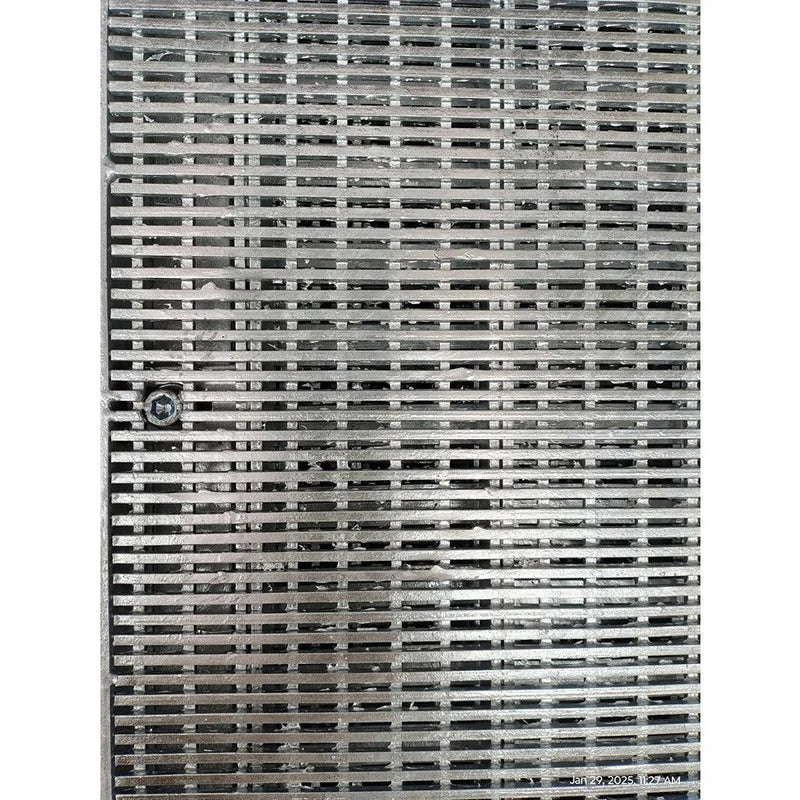

• Lockable for additional security, one side is secured with a locking bolt
• One side must be unlocked and opened first before opening the opposite grate section
• Center Hinged Opening design eliminated the need to completely remove the grate during servicing
• The linear heelguard design provides narrow grate openings to improve pedestrian safety and reduce the risk of heels and small wheels becoming caught

Common Applications

• Prevention of soil erosion and runoff
• Drainage of stormwater
• Suitable for both new installations and replacement projects
