Product Overview

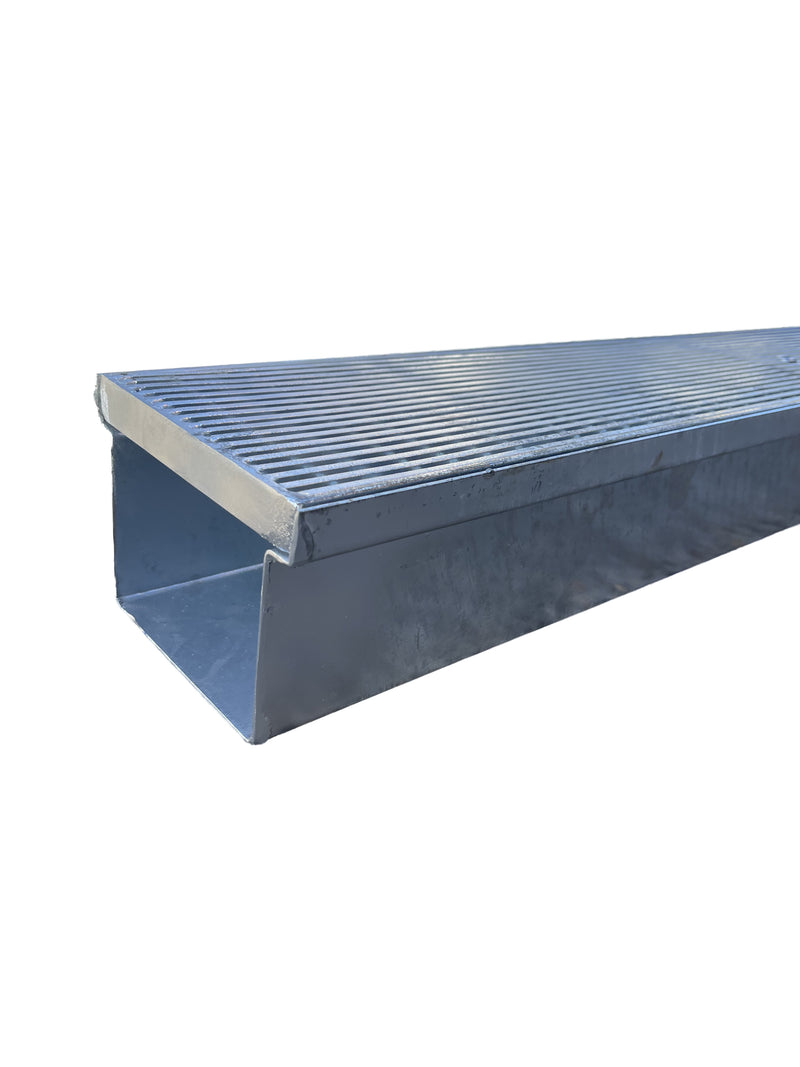

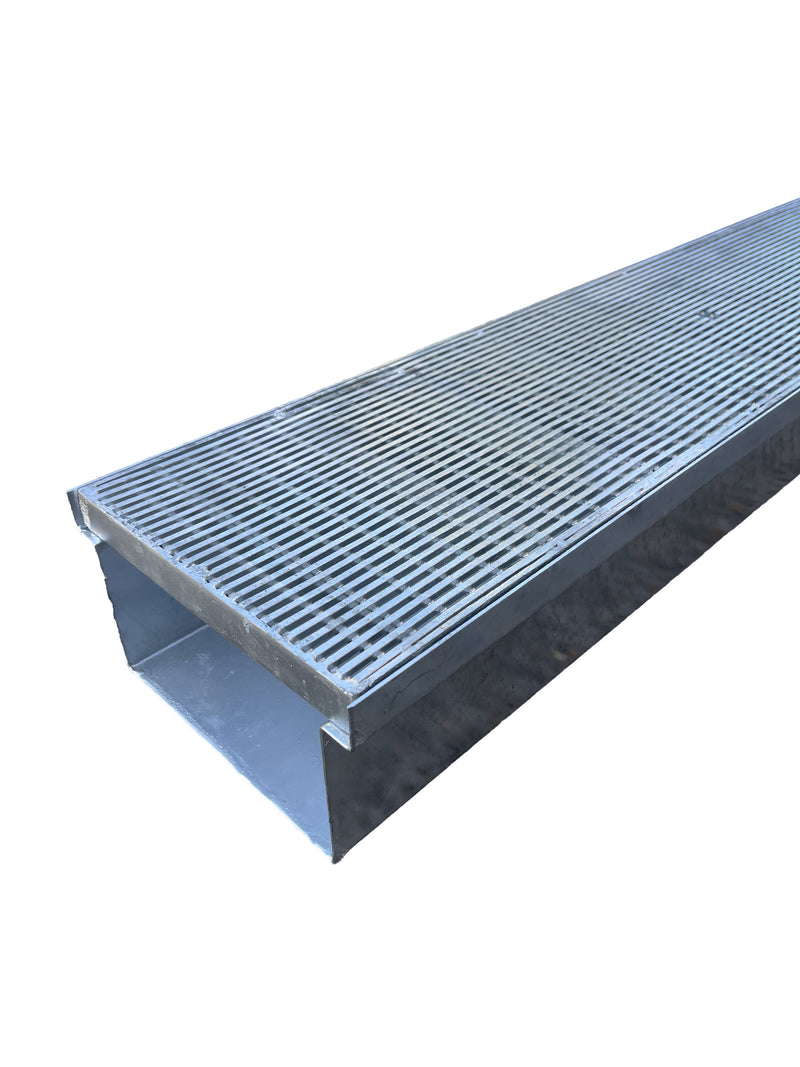

Class B Hot-Dip Galvanised Linear Heelguard Grate and Channel Drainage System Set is designed to provide safe, efficient stormwater drainage for residential and light commercial applications. Featuring a linear heelguard grate pattern, it offers a modern architectural appearance while delivering excellent water flow.

The narrow linear openings create a heel-proof walking surface, helping to prevent high heels, walking aids, wheelchair wheels and trolly wheels from catching in the grate. The linear design also acts as an effective leaf guard, reducing the amount of leaves and debris entering the drainage channel and minimizing maintenance.

Available Sizes

Grates (Lids)

• 1 metre length

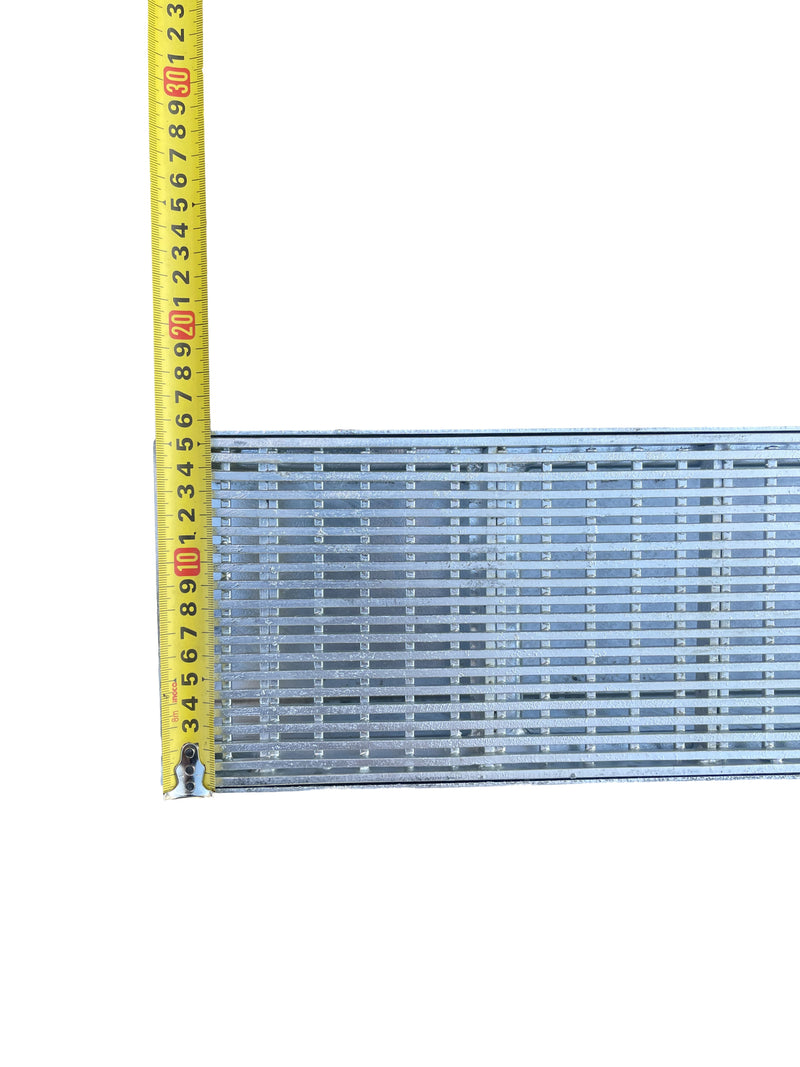

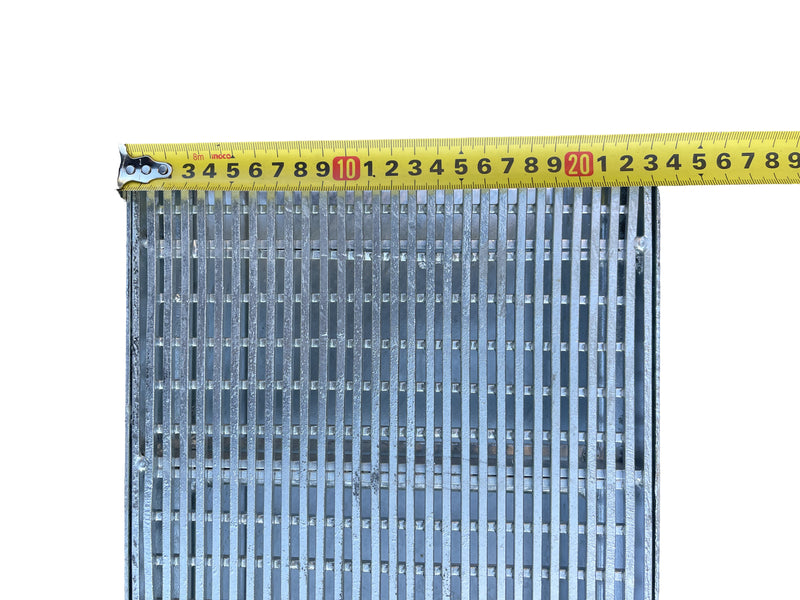

• Available in 150mm and 230mm widths
• Class B load rating Galvanised Steel

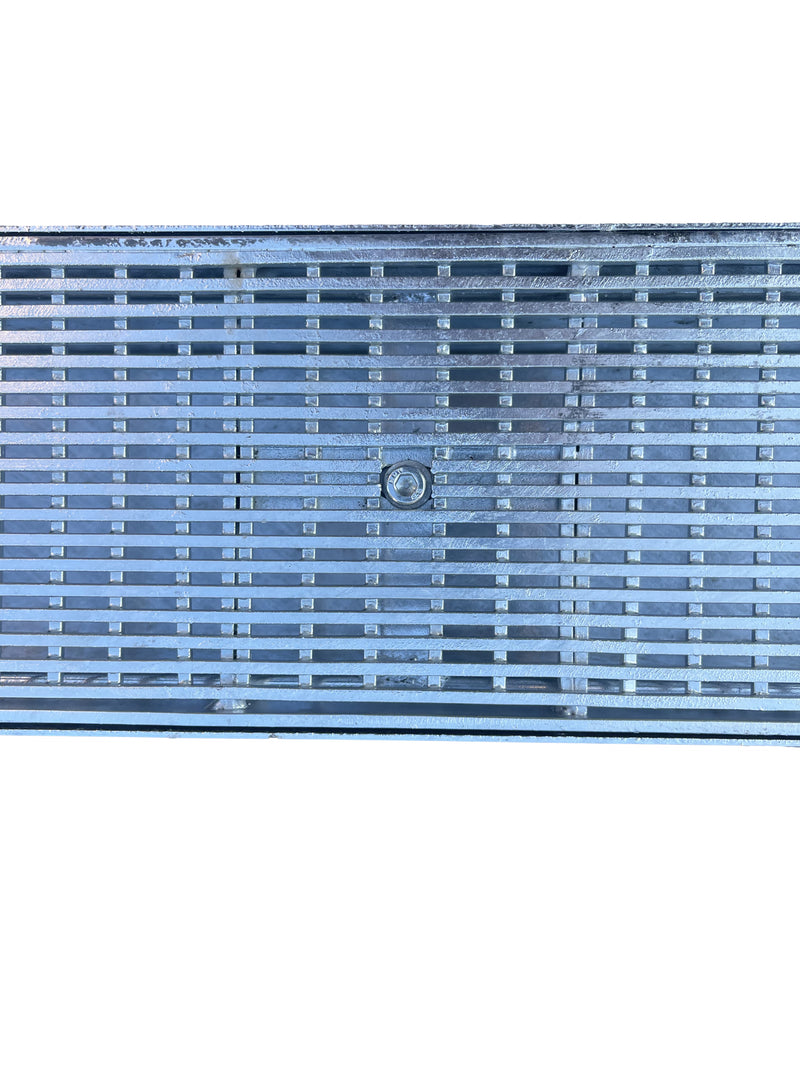

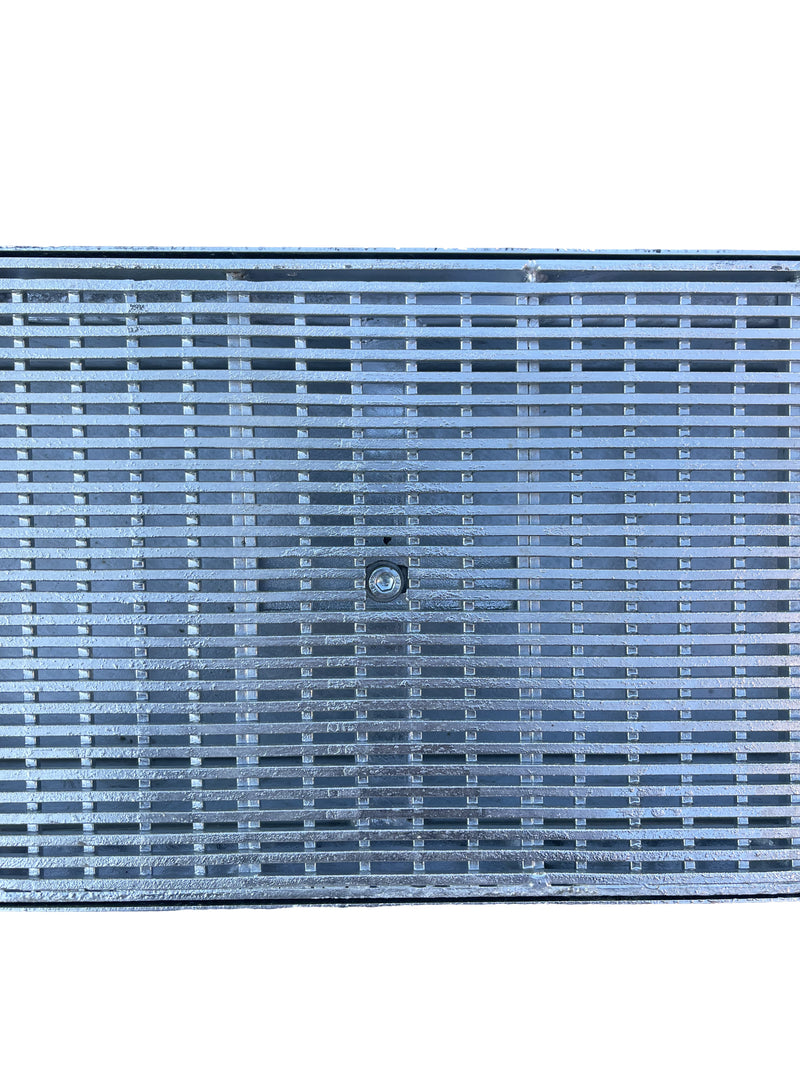

• Linear Heelguard Grate Pattern for efficient water flow
• Bolt-down security fixing

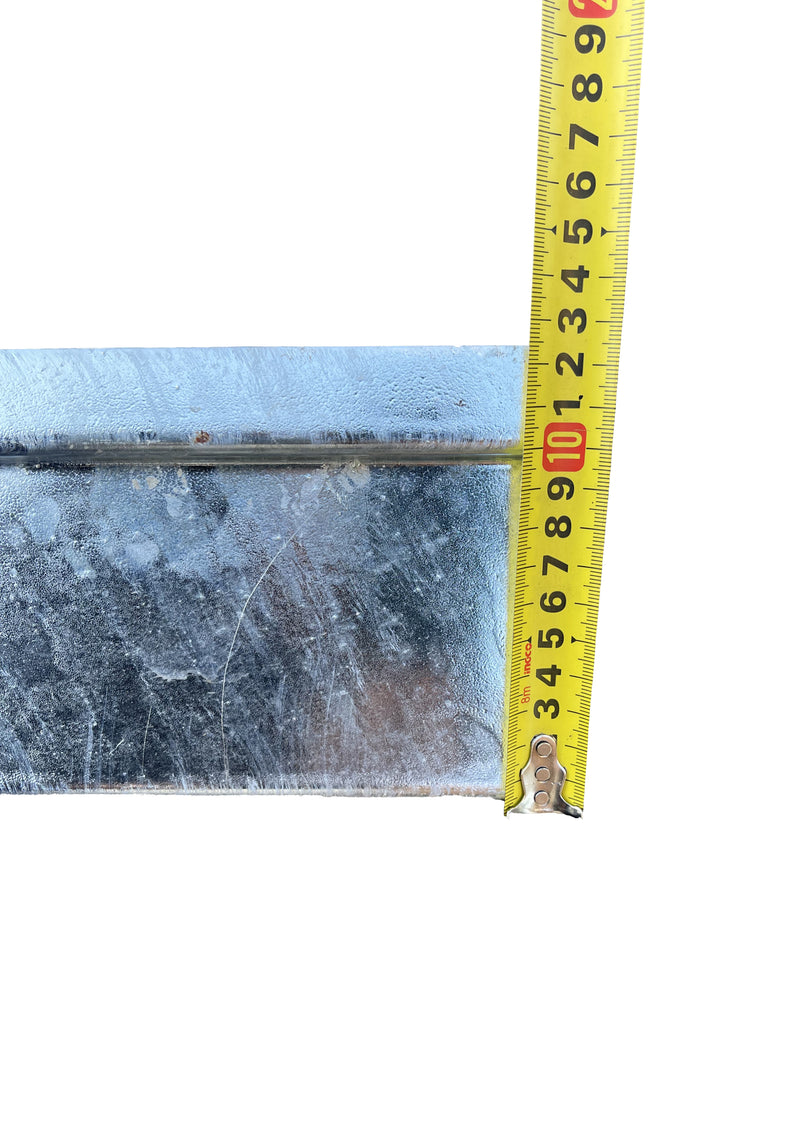

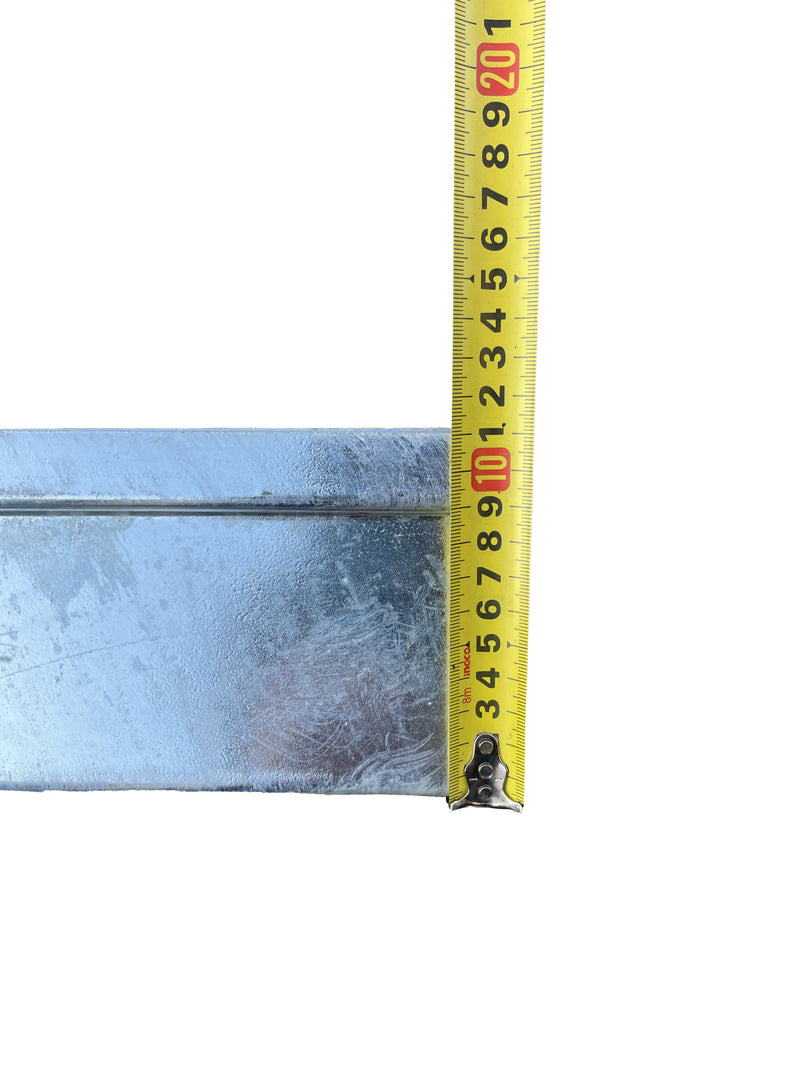

Channel

• Available in 1m, 2m and 3m lengths

• Designed for efficient water and stormwater drainage
• Grate (Lid): 1m length only with 2 widths to choose from (150mm and 230mm)
• Channel:  1, 2 and 3m length or extendable to your desired length, easy drainage system

Accessories (sold separately, fit for 150mm and 230mm widths)

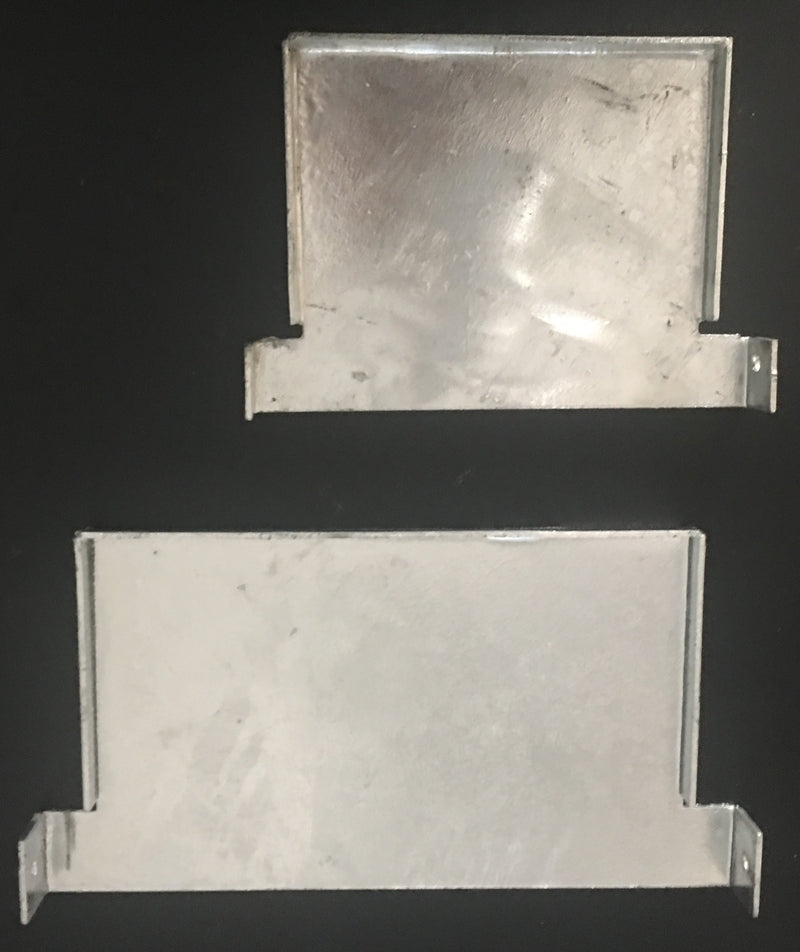

• End Caps (Stop Ends)

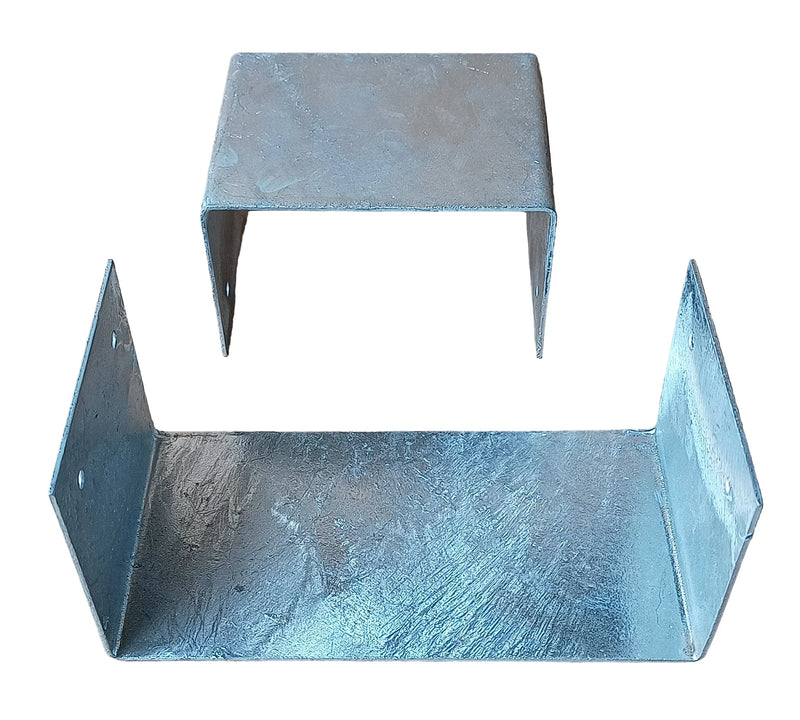

• Channel Joiners (Straight Connector)
• Right Angel (90 degrees) Connector

Key Features

• Modern Linear heelguard grate design provides a safer walking surface by helping to prevent high heels, mobility aids, wheelchair wheels and trolley wheels from catching the grate. It also enhances the appearance of contemporary landscapes.
• Class B load rated for residential driveways and light commercial applications.
• Bolt-down security grate helps prevent movement, theft and unauthorized removal.
• Modular channel system allows easy new installation or replacing existing drainage systems, and extension to suit any project length.

Common Applications

• It is suitable for use around the home and light commercial areas including exterior patios, paved terraces, garage and other outdoor areas where drainage is required.
• Class B Load Rating 150mm wide suitable for residential driveways, pathways, patios and landscaped areas
• Class B Load Rating 230mm wide suitable for light commercial developments, apartment complexes, light vehicles access areas and public spaces requiring greater drainage capacity.
•
