Product Overview

The Class B Hot-Dip Galvanised Lockable Heelguard Grate & Frame Set is designed to provide secure access to underground service pits, utility chambers and drainage systems while delivering excellent pedestrian safety. Manufactured from Hot-Dip Galvanised Steel, each grate features a lockable hinged design that allows convenient maintenance access without completely removing the grate.

The honeycomb Heelguard pattern helps prevent high heels, walking sticks and trolley wheels from becoming trapped while maintaining excellent stormwater drainage. They come with accessible hinge. These grates easily fit into the pit's opening and are flush with its top edge.

Specifications

• Frame Size: 935mm x 935mm x 50mm comes with
• Grate Size: 920mm x 920mm x 50mm (Center Hinged and Open)
• Hot-Dip Galvanised Steel
• Heelguard (Honeycomb) Pattern

• Centre Opening (Two-Piece Hinged) and Lockable Grate Type
• Grate can be bolted down to the frame, and frame goes into the concrete slab

• Complies with Australian Standards

• Class B Load Rating suitable for pedestrian areas and light vehicle traffic

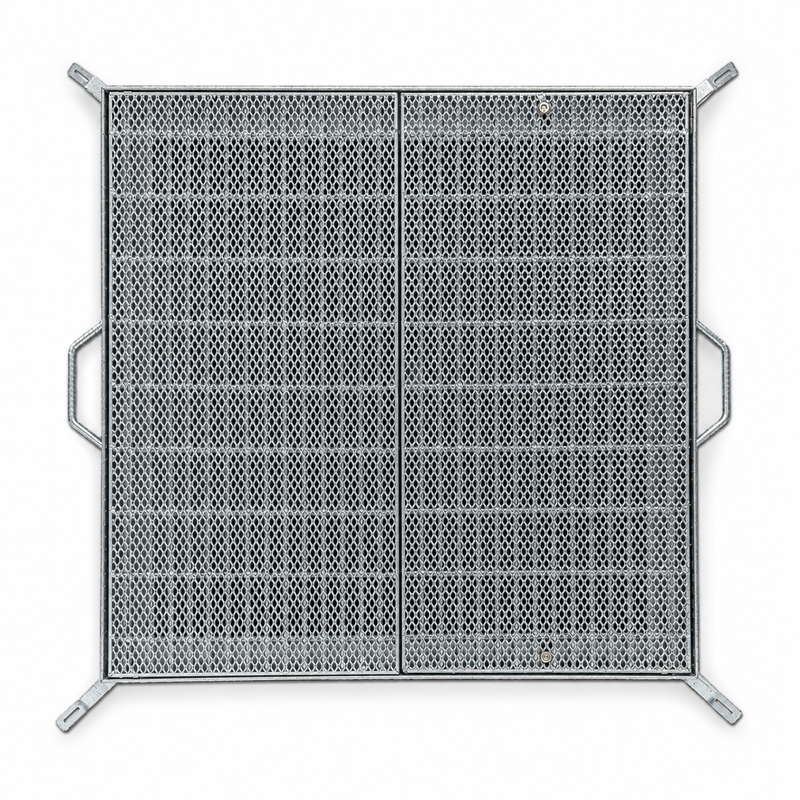

Class B Hot-Dip Galvanised Lockable Heelguard Grate & Frame Set

Other Available Size Options:

• • 450mm × 450mm × 50mm — Side Hinged
  • 600mm × 600mm × 50mm — Side Hinged
  • 600mm × 900mm × 50mm — Centre Opening
  • 920mm × 920mm× 50mm — Centre Opening
  • 1000mm × 1000mm × 50mm — Centre Opening

Key Features

• Two-piece centre opening hinged design and sequential opening system improves safety
• Lockable for additional security, one side is secured with a locking bolt
• One side must be unlocked and opened first before opening the opposite grate section
• Center Hinged Opening design eliminated the need to completely remove the grate during servicing
• Heelguard (Honeycomb) pattern improves pedestrian safety, it helps prevent heels, wheels from becoming trapped


Common Applications

• Prevention of soil erosion and runoff
• Drainage of stormwater
• Suitable for both new installations and replacement projects

Browse our grates and frame set selection for other sizes.

*** These are heavy items and our freight estimate calculator includes residential surcharge because most customers' delivery locations are residential. Please contact us for local and interstate delivery cost if your delivery location is commercial.
