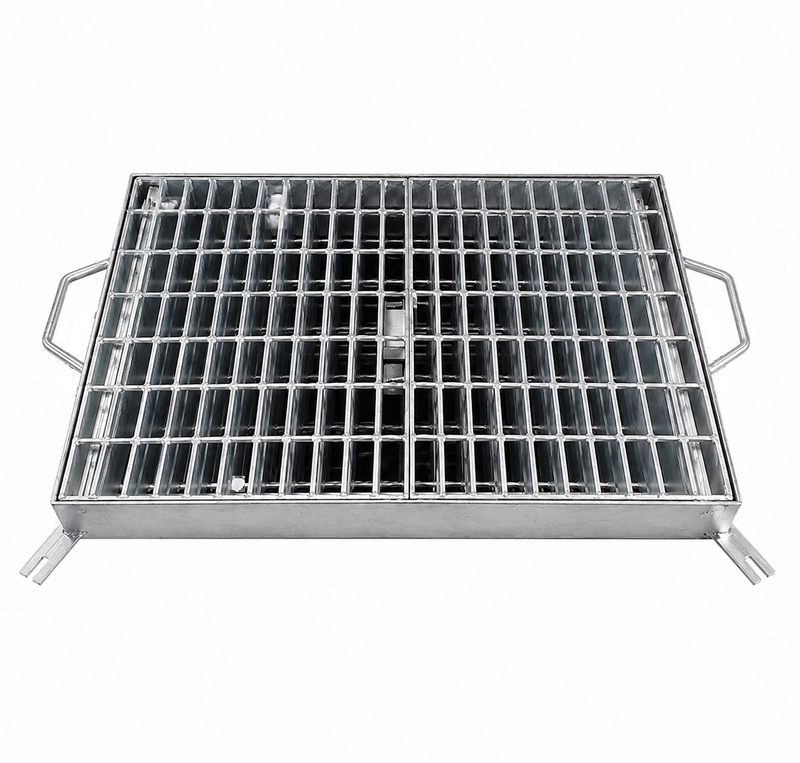

Class B Galvanised Grate and Frame Hinge Lockable 600mm X 900mm X 50mm
Heavy or Bulky Item | Local Shipping Available
This item is quite large, so we recommend pickup option. If you require shipping outside of Sydney Metro, please contact us for an affordable custom shipping quote!
Please Call 0435 367 409 if Shipping is Needed
Discounts will automatically apply at the checkout, if applicable.
Product Overview
The Class B Hot-Dip Galvanised Centre Opening Lockable Grate and Frame Set is designed for larger access pits requiring secure, controlled entry. It also provides safe and convenient access to larger underground service pits and utility chambers.

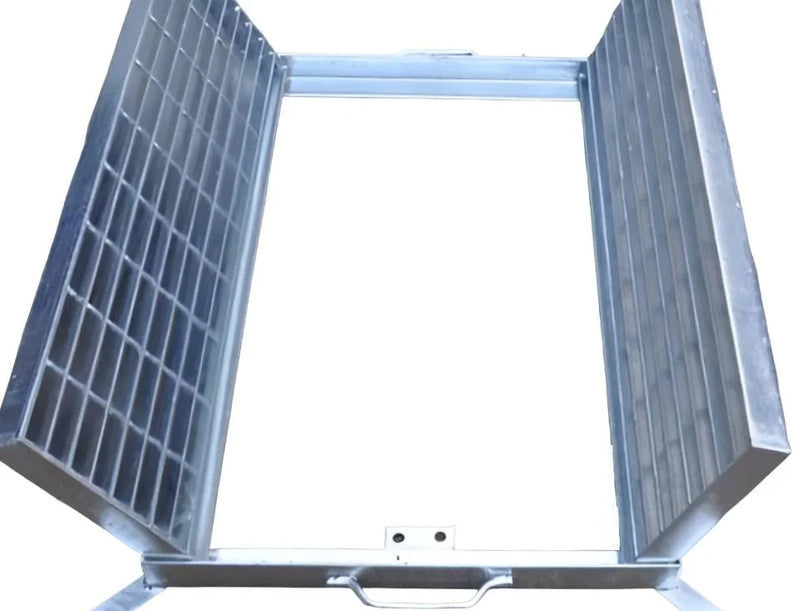

The grate consists of two hinged sections, allowing one side to be unlocked and opened first before opening the second section, providing safe and convenient access while maintaining security during maintenance.
Manufactured from Hot-Dip Galvanised Steel, this system provides long-lasting corrosion resistance and dependable performance in pedestrian and light vehicle traffic areas.They come with accessible hinge. These grates easily fit into the pit's opening and are flush along the surface.
Specifications
- Frame Size: 610mm x 910mm x 50mm comes with
- Grate Size: 600mm x 900mm x 50mm (Center Hinged and Open)
- Hot-Dip Galvanised Steel
- Traditional Open-Grid Pattern

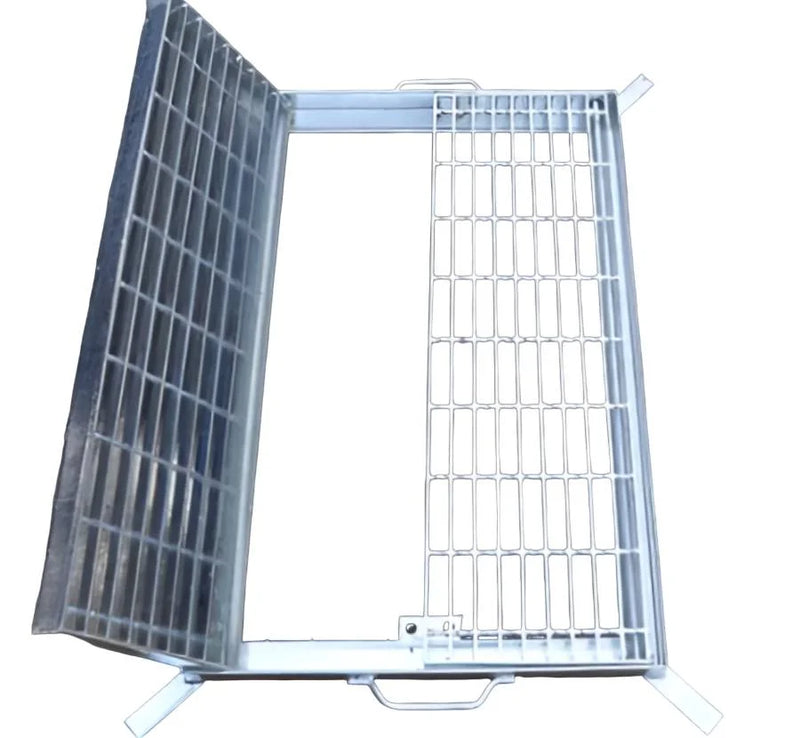

- One side must be unlocked and opened first before opening the opposite grate section
- Centre Opening (Two-Piece Hinged) and Lockable Grate Type
-

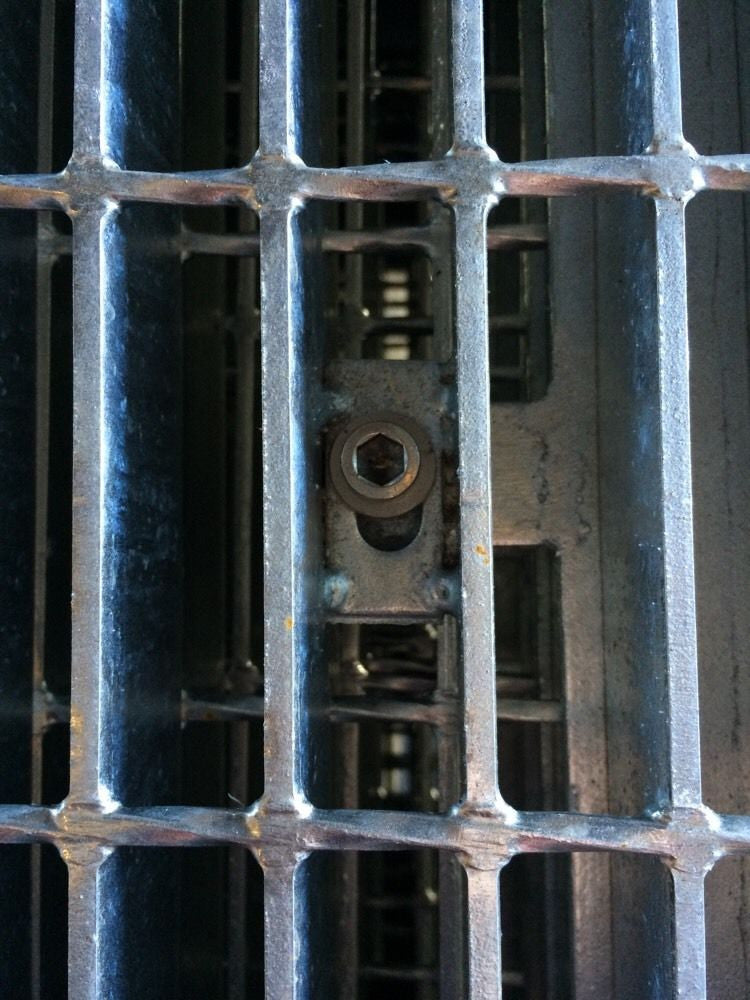

Grate can be bolted down to the frame, and frame goes into the concrete slab
- Complies with Australian Standards
- Class B Load Rating suitable for pedestrian areas and light vehicle traffic
Class B Hot-Dip Galvanised Lockable Traditional Grate & Frame Set
Other Available Size Options:
- 450mm × 450mm × 50mm — Side Hinged
- 600mm × 600mm × 50mm — Side Hinged
- 600mm × 900mm × 50mm — Centre Opening
- 920mm × 920mm × 50mm — Centre Opening
- 1000mm × 1000mm × 50mm — Centre Opening
Key Features
- Two-piece centre opening hinged design and sequential opening system improves safety
- Lockable for additional security
- Hinged design eliminated the need to completely remove the grate during servicing
- Traditional open-grid pattern delivers excellent stormwater drainage
Common Applications
- Prevention of soil erosion and runoff
- Drainage of stormwater
- Suitable for both new installations and replacement projects
Browse our grates and frame set selection for other sizes.
