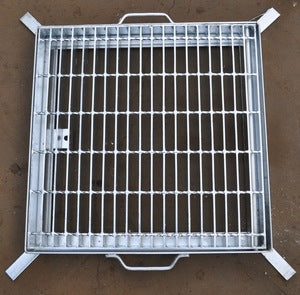

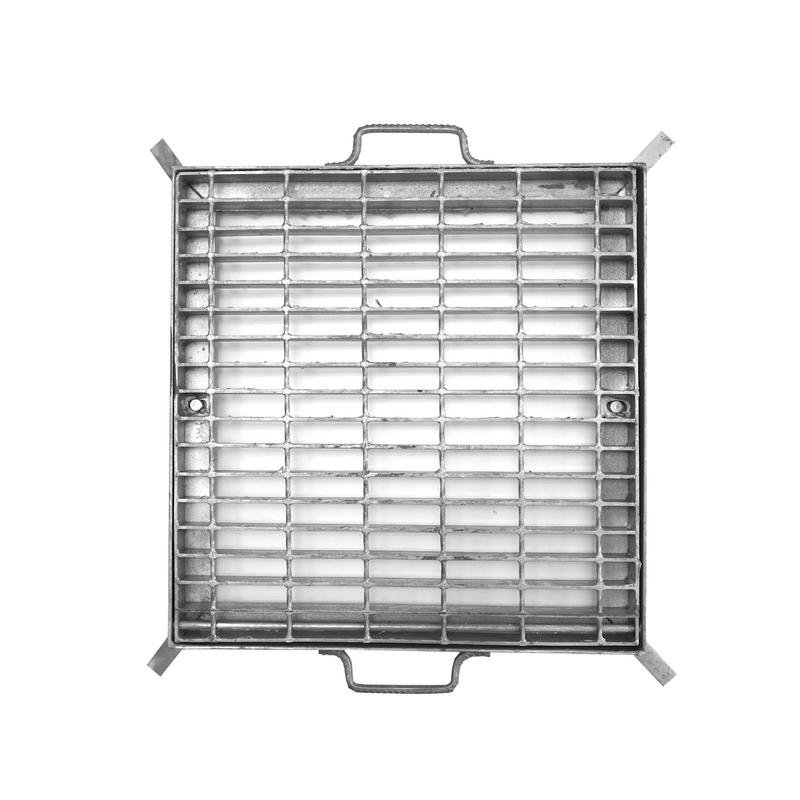

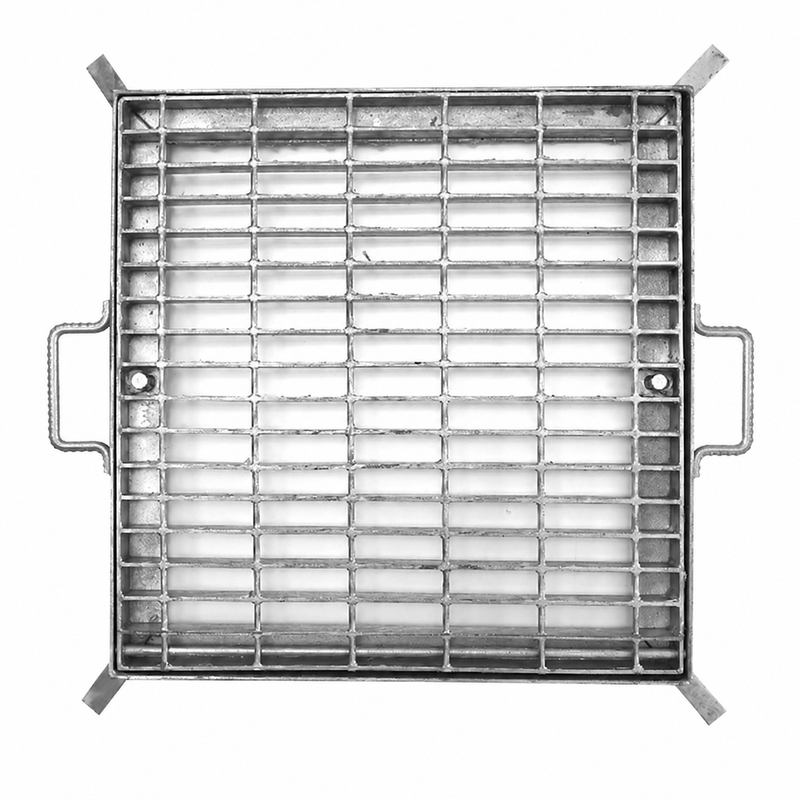

Class B Galvanised Grate and Frame With Hinge, Side Open & Lockable 600mm X 600mm X 50mm
Discounts will automatically apply at the checkout, if applicable.
Product Overview
The Class B Hot-Dip Galvanised Side Hinged and Lockable Grate and Frame Set is designed to provide secure and convenient access to underground service pits, utility chambers and drainage system. Featuring a side hinged grate with an integrated locking mechanism, the grate opens easily while remaining attached to the frame, improving workplace safety and simplifying routine maintenance.
Manufactured from Hot-Dip Galvanised Steel, this grate and frame set offers outstanding corrosion resistance and is suitable for pedestrian areas and light vehicle traffic.They come with accessible hinge. These grates easily fit into the pit's opening and are flush along the surface.
Specifications
- Frame Size: 610mm x 610mm x 50mm comes with
- Grate Size: 600mm x 600mm x 50mm (Side Hinged and Open)
- Class B Hot-Dip Galvanised Steel
- Traditional Open Grid Pattern
- Side Hinged and Lockable Grate Type
-

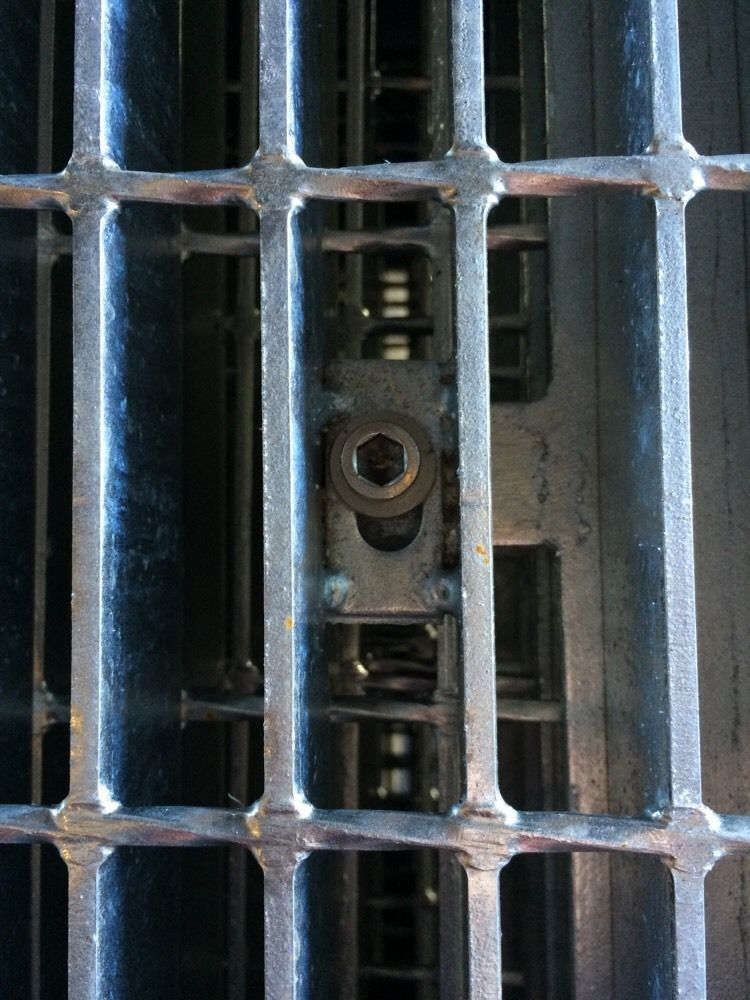

Grate can be bolted down to the frame, and frame goes into the concrete slab
- Complies with Australian Standards
- Class B Load Rating suitable for pedestrian areas and light vehicle traffic
Class B Hot-Dip Galvanised Lockable Traditional Grate & Frame Set
Other Available Size Options:
- 450mm × 450mm × 50mm — Side Hinged
- 600mm × 600mm × 50mm — Side Hinged
- 600mm × 900mm × 50mm — Centre Opening
- 920mm × 920mm × 50mm — Centre Opening
- 1000mm × 1000mm × 50mm — Centre Opening
Key Features
- Side Hinged design allows quick and convenient access for maintenance
- Hinged design eliminated the need to completely remove the grate during servicing
- Traditional open-grid pattern delivers excellent stormwater drainage
Common Applications
- Prevention of soil erosion and runoff
- Drainage of stormwater
- Suitable for both new installations and replacement projects
Browse our grates and frame set selection for other sizes.
*** These are heavy items and our freight estimate calculator includes residential surcharge because most customers' delivery locations are residential. Please contact us for local and interstate delivery cost if your delivery location is commercial.
