Product Overview

The Class B Hot-Dip Galvanised Traditional Grate & Frame Set provides a strong and reliable drainage solution for residential, commercial and outdoor areas.

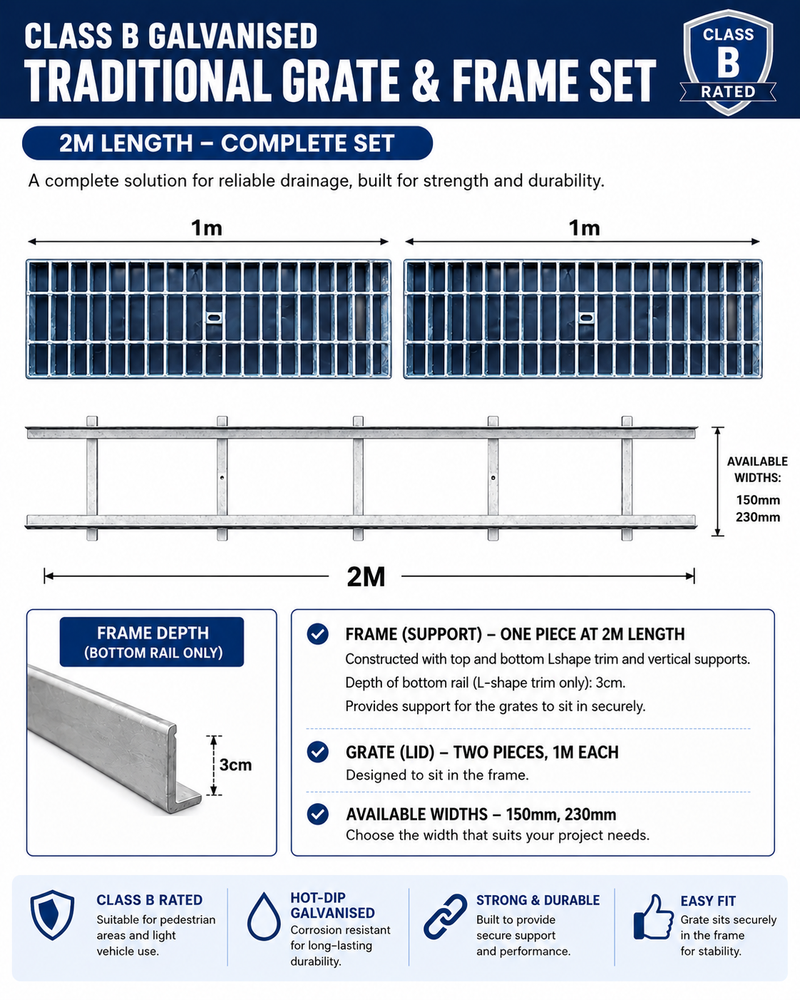

The traditional open-bar grate design allows stormwater to drain efficiently while providing a stable surface for pedestrians and light vehicles. Each complete set includes two removable 1m grates and one continuous 2m support frame.

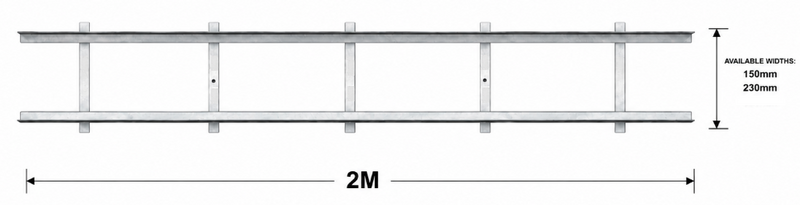

The frame is constructed with hot-dip galvanised top and bottom L-shaped rails and vertical supports, providing a secure base for the grates. Bolt-down security helps keep each grate firmly positioned and discourages unauthorised removal.

Specifications

• Complete Set Configuration includes 2 x 1m Grates and 1 x 2m Support Frame
• Grates: 2 Traditional Grates (1m length each)
• Frame depth (L-shaped rail) is 30mm (2m length)
• Grates size: 150mm(W)×25mm(H)×1m(L)
• Frame size: 150mm(W) x 30mm(H)×2m(L)
• Traditional Grate Design
• Class B Load Rating Hot-Dip Galvanised Steel
• Bolt-down security Available
• Suitable for Grate and Frame set installation (other available size 150mm, 230mm and 300mm)

Common Applications

• Drainage or diversion of stormwater, sewage and wastewater, etc.

Browse our grates and frame set selection for other sizes.
