Dimple Sheet Membrane 1m x 15m, 12mm Dimple, Geotextile Backed

Perfect For Retaining Wall Drainage or similar applications with these Dimple Sheets or Dimple Drain Sheets.

Dimple drainage sheets are a perforated dimpled mat with high drainage capacity for horizontal and vertical use on retaining walls, roof slabs, under floor slabs, roof landscaping, parking decks and tunnels. The dimples create a continuous drainage space that allows structures to breathe and relieves hydrostatic pressure. Install with the geotextile facing the soil and the dimples against the wall. For wider areas, press dimples along sheet edges together or butt edge-to-edge and secure with reinforced tape.

Specifications

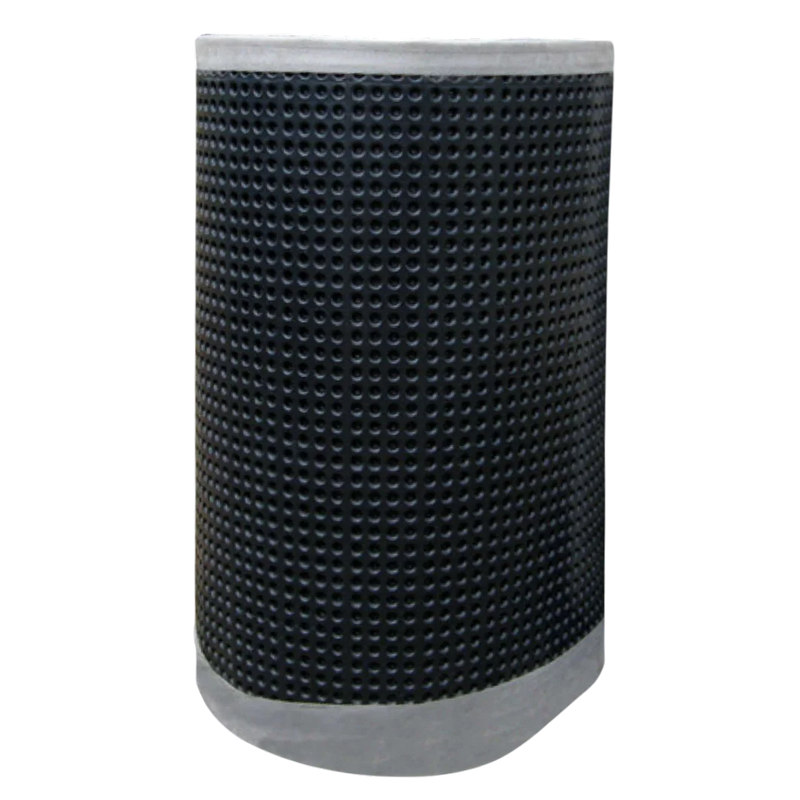

• Sheet Size: 1 m x 15 m (Length)
• Coverage per sheet: 15 m²
• Dimple Size: 12 mm

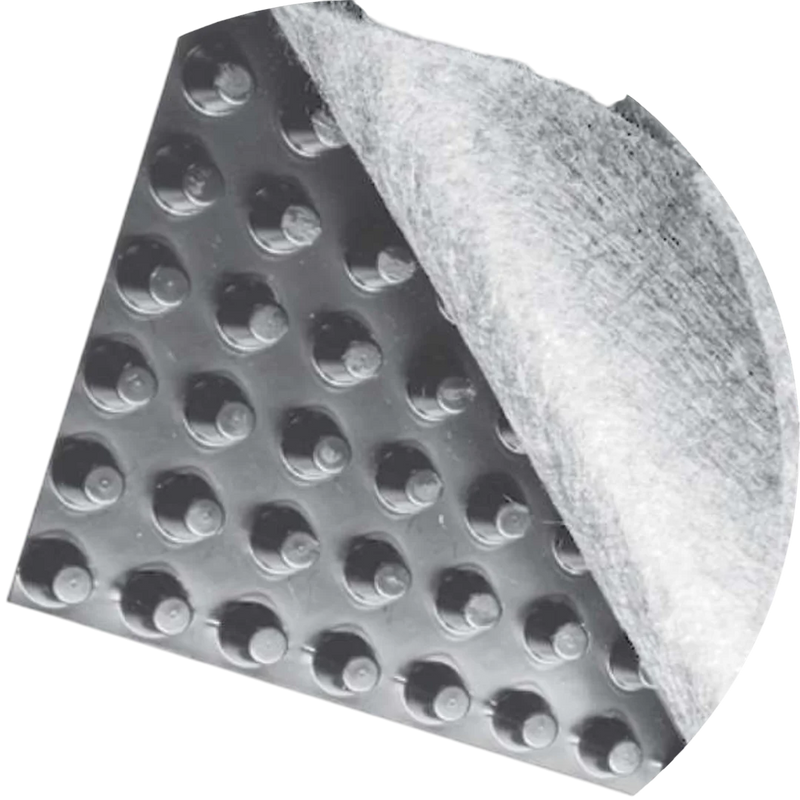

• Material: Composite plastic polymer (high-void polymer core with bonded nonwoven geotextile)
• Thickness / Profile: dimpled core designed for high flow and soil filtration
• Typical Roll Width: 1.0 m
• Installation: Cut on site, overlap and tape geotextile seams, geotextile faces soil
• Shipping: Bulky item, recommend pickup only from warehouse if possible

Common Applications

• Retaining Wall Drainage: Provides a drain and protective layer to prevent water buildup and reduce hydrostatic pressure behind walls.
• Basement Waterproofing: Protects waterproofing membranes and channels water away from basement walls to keep interiors dry and reduce mold risk.
• Green Roofs & Planters: Offers efficient drainage for planting mediums and prevents waterlogging of vegetation layers.
• Foundation Protection: Acts as a protective drainage barrier around foundations to reduce moisture ingress and prolong structural integrity.
• Parking Decks & Slab Systems: Suitable for drainage beneath slabs and deck membranes where positive water removal is required.
• Tunnel & Civil Drainage: Used in civil and environmental projects for leachate collection and horizontal drain systems.

Installation Notes

• Position sheet with geotextile toward soil.
• Overlap sheets or butt edges, peel-back and tape geotextile at joins to prevent soil ingress.
• Provide suitable outlet drainage (collection pipe or channel) to carry water away from the structure.
• Avoid heavy compaction directly against the face, use appropriate backfill and compaction methods.
• For heavy vertical loads or traffic-bearing applications, specify a profile rated for higher compressive strength.
